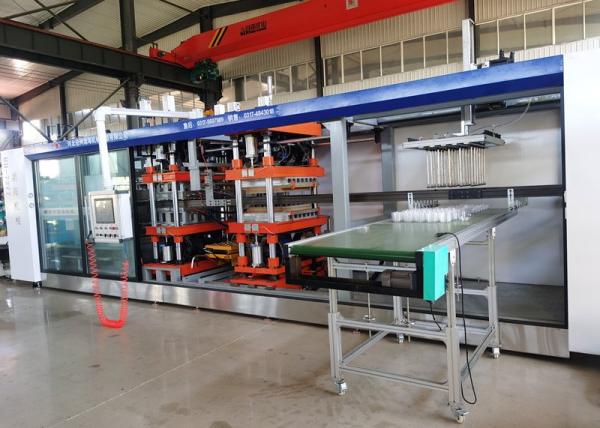

Vacuum Multi Station Blister Forming Machine Plc

Product Categories

Auto Brick Making Machine [119]
Clay Brick Making Machine [76]
Fly Ash Brick Making Machine [98]
Automatic Brick Cutting Machine [66]
Brick Stacking Machine [50]
Blister Forming Machine [122]
Box Feeder Machine [21]
Brick Extruder Machine [36]
Hammer Mill Rock Crusher [12]
Double Shaft Mixer [30]
Double Roller Crusher [22]
Robot Stacking System [30]

CANGZHOU BOHAI BRICK MACHINERY CO.,LTD

Contact Now

Vacuum Multi Station Blister Forming Machine Plc

Brand Name : HR

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Condition : New

Automatic : Yes

Warranty of core components : 1 Year

Core Components : Motor, PLC

Heating Power (kW): core components : 36 kW

Installed power : 200kw

Weight (T) : 18T

Contact Now

Multi-Station Blister Forming Machine Positive And Negative Pressure

1. Suck and pull the food containers up. Even the containers don’t be sucked out successfully, this won’t affect next move.
2. There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.

Product Paramenters

Model	Unit	HR-S1800	HR-M1080
Collection method		Staking	Machanical arm
Max. forming area	mm	1000750 10001100	1000×1250 1000*1400
Max. forming depth	mm	100	100
Production efficiency	s/die	4~5	2.8~5
Forming pressure	T	20	35
Mounted power	kw	170	200
Total weight	T	16	18
Installation size	m	153.53	1563

3. Heater box separate into three parts, hydraulic cutting speed is faster, and use mechanical arms to suck products, all above methods reduce the whole working time.
4. Extend mold length, making the forming mold area larger and improving the production efficiency.
