Brand Name : BoHai
Model Number : CB
Certification : ISO-9001
Place of Origin : CHINA
MOQ : 1
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 50 SETS
Delivery Time : 60 days
Packaging Details : wooden box and container
Applicable Industries : Building Material Shops, Manufacturing Plant,
Type : Hollow Block Making Machine, double stage vacuum
Brick Raw Material : clay .mud.soil.fly ash
Processing : Hollow solid paving Brick Production Line
Core Components : PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing,
Vacuum Degree : ≤-0.092 Mpa
Power : 450+200 Kw
Vacuum Extruder Auto Fully Automatic Burned Fired Green Red Mud Soil Clay Brick Making Machine
1 . Machine feature
1. Strong applicability, high output. Good choice for big project.
2. The raw material for making bricks can be soil,clay, fly ash, coal gangue, shale, urban construction waste, gangue waste, inferior soil, etc.
3. High vacuum and pressure extrusion and it is good to make strong solid bricks and hollow bricks with qualified holes. The size of solid brick and the holes of hollow bricks can be changed according to your needs.
2 . Techical parameter
Date | Units of meas | JKY150 - 4.0 |
Production capacity | Pieces/h | 45000-66000 |
Reamer diameter | mm | 750 |
Pressure | Mpa | 4.0 |
Moisture content | % | 13~18 |
Vacuum degree | Mpa | ≤-0.092 |
Power | kw | 450+200 |
Size | mm | 11000×3300×3700 |
Weight | kg | 480 |
![]() |

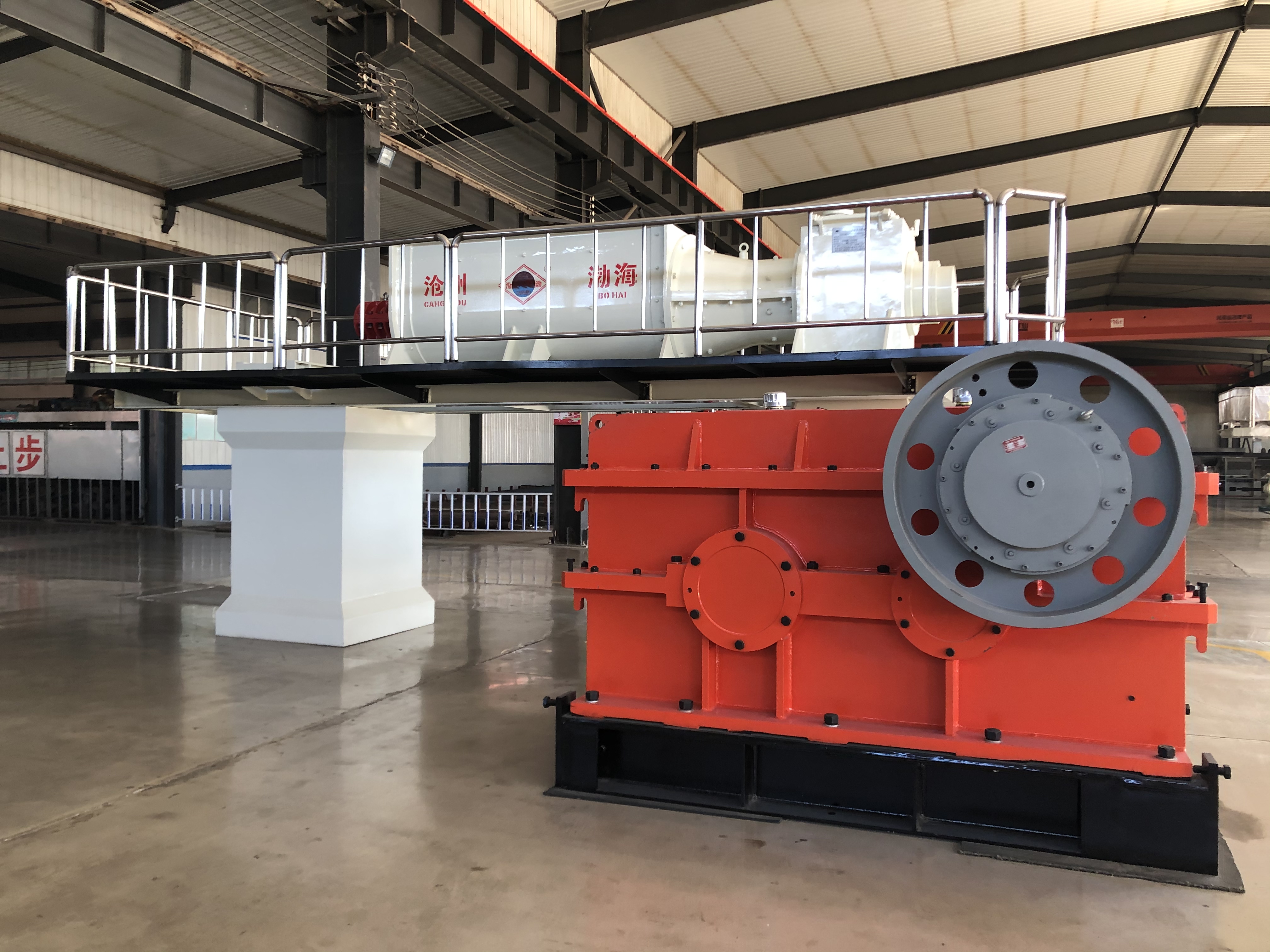

vacuum extruder auto fully automatic burned fired green red mud soil clay brick making machine Images |
