2mm Sheet Blister Forming Machine Servo Vacuum Auto To Food Container

Name: 2mm Sheet Blister Forming Machine Servo Vacuum Auto To Food Container
Brand: BoHai
Price: 1 USD

Brand Name : BoHai

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Sheet Thickness(mm) : 0.15 - 2 mm

Weight (T) : 3.5 T

Forming Width (mm) : 200 mm

Air Pressure(MPa) : 0.5 MPa

Name : Disposable Plastic Molding Machine

Core Components : Motor, PLC

Warranty of core components : 1 Year

Dimension(L*W*H) : 4.3X1.7X2.8m

Contact Now

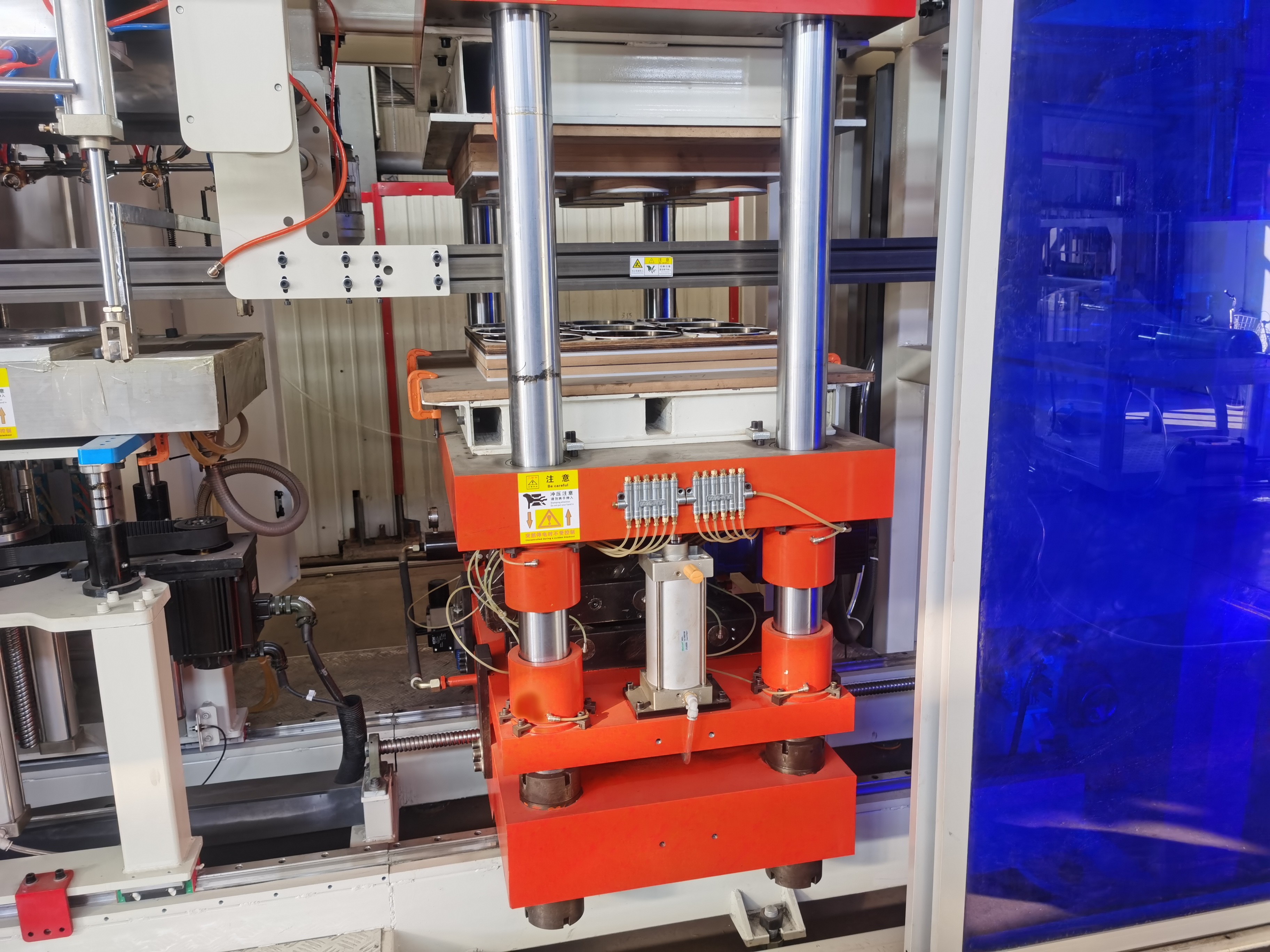

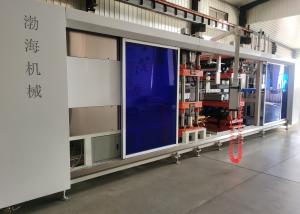

Servo Vacuum Blister Forming Machine Auto For Food Container

The whole machine is fully servo driven. One machine realizes the integrated production of forming, cutting, palletizing and three stations. Positive and negative pressure upper and lower mold forming. Servo film feeding, stepless length adjustment, high speed, accuracy and stability. Three-stage heating of upper and lower electric furnaces. The mould opening and closing of the forming and cutting unit are controlled by servo motors, and the products are automatically

Product Paramenters

Max. Formng Area	760×420mm
Max. Forming Depth	200mm
Mold Plate Size	1350×520mm
Main Servo Motor	P-15KW (4P)
Stretching Servo Motor	7.5KW
Sheet Feeding Servo Motor	4KW
Sheet Thickness	0.25~2.0mm
Running Speed	≤32cycles/min
Electrical Consumption	Approx. 60KW
Installing Power	Approx. 140KW
Solenoid Valve	MAC, USA

One machine can complete the perfect combination of laser knives and hardware knives at the same time, reducing the customer's investment ratio, meeting the production requirements of different products to the greatest extent, and improving product competitiveness.
　　
