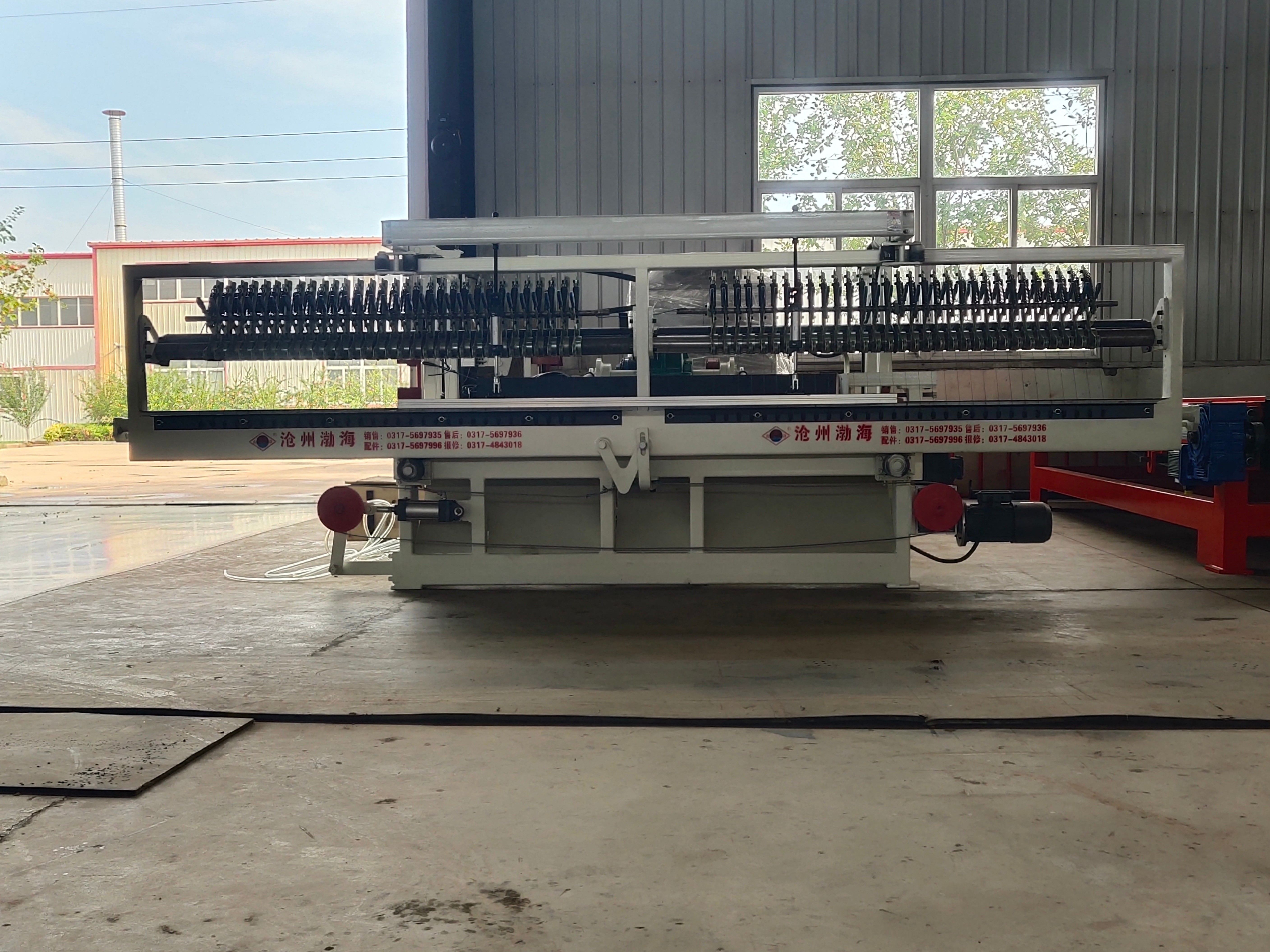

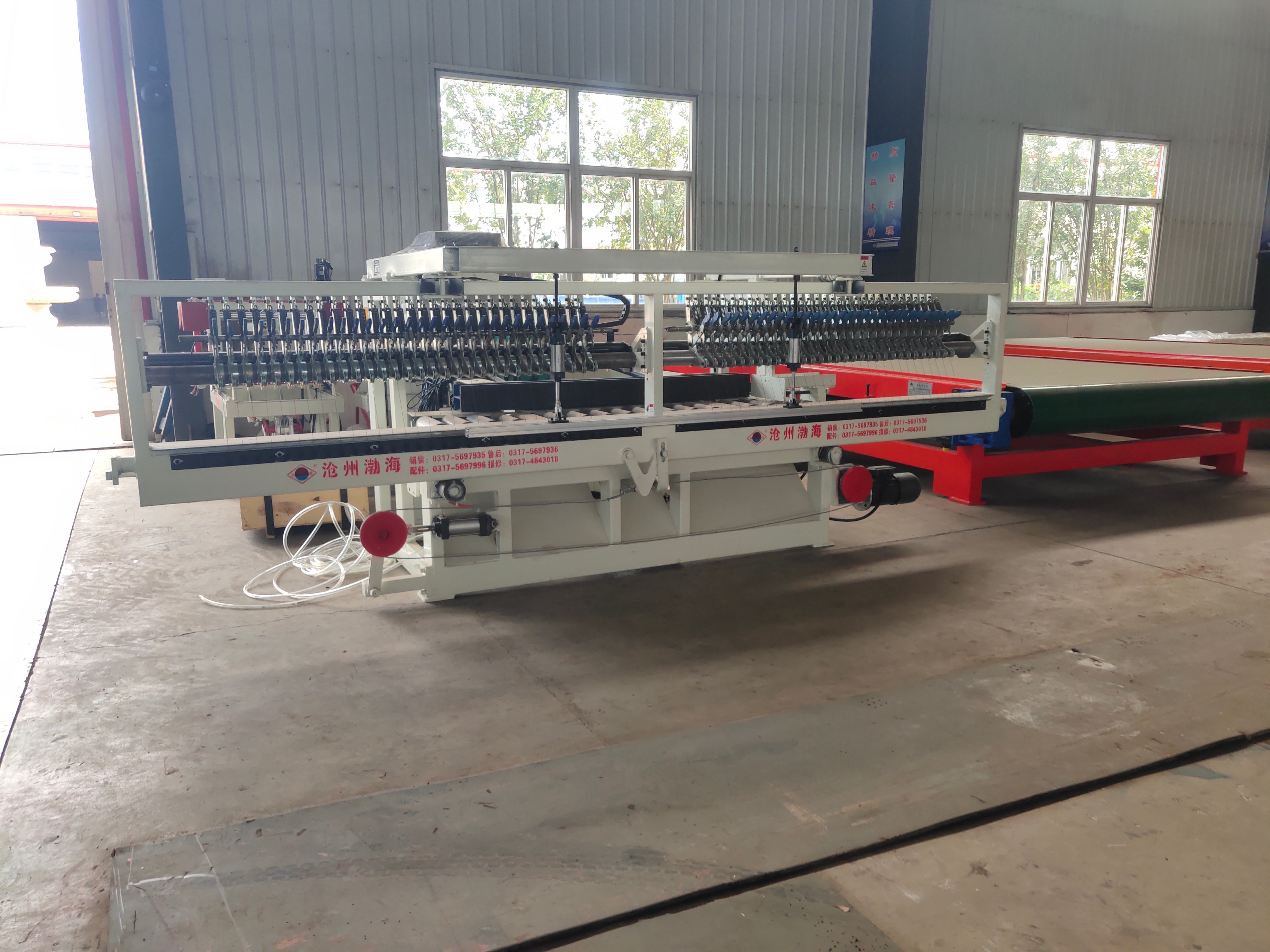

14kw Pneumatic fully Automatic Clay Brick Cutting Machine

Brand Name : CB

Model Number : JKL

Certification : ISO-9001 CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 SETS

Delivery Time : 60 days

Packaging Details : wooden box and container

Convey Pattern : Electric

Cutting Pattern : Pneumatic

Cutting frequency : ≤18 times /min

Cutting height : 260mm

Cutting length : 1750-2500 mm

production capacity : 20000-70000 pcs/h

Overall size : 1100*3500*1700 mm

Contact Now

peumatic heavy type automatic double cutting machine

Date	Units of meas	Double brick cutter
Power	kw	14
Cutting frequency	times/min	10-20
Production capacity	pieces/h	20000-55000
Overall dimension	mm	10000×3100×1600

1 .Product details

QT-26QP280 senes full-automatic strip cutting and blank cutting machine is mainly used to cut wud which is squeezed from extruder into qualified clay brick in the process of sintered brick production .

The new vertical stp cutting and blank cutting system designed and developed independently by which adopts advanced automati plc control , combing with photoelectic , close positioning , pneumatic and electnc servo systems and etc.

Double wire frame blank cutting machine can realize the interchangeable production to maximize the brick machine capacity . It has advantages of high easy operation , simple maintenance and so on.

14kw Pneumatic fully Automatic Clay Brick Cutting Machine
